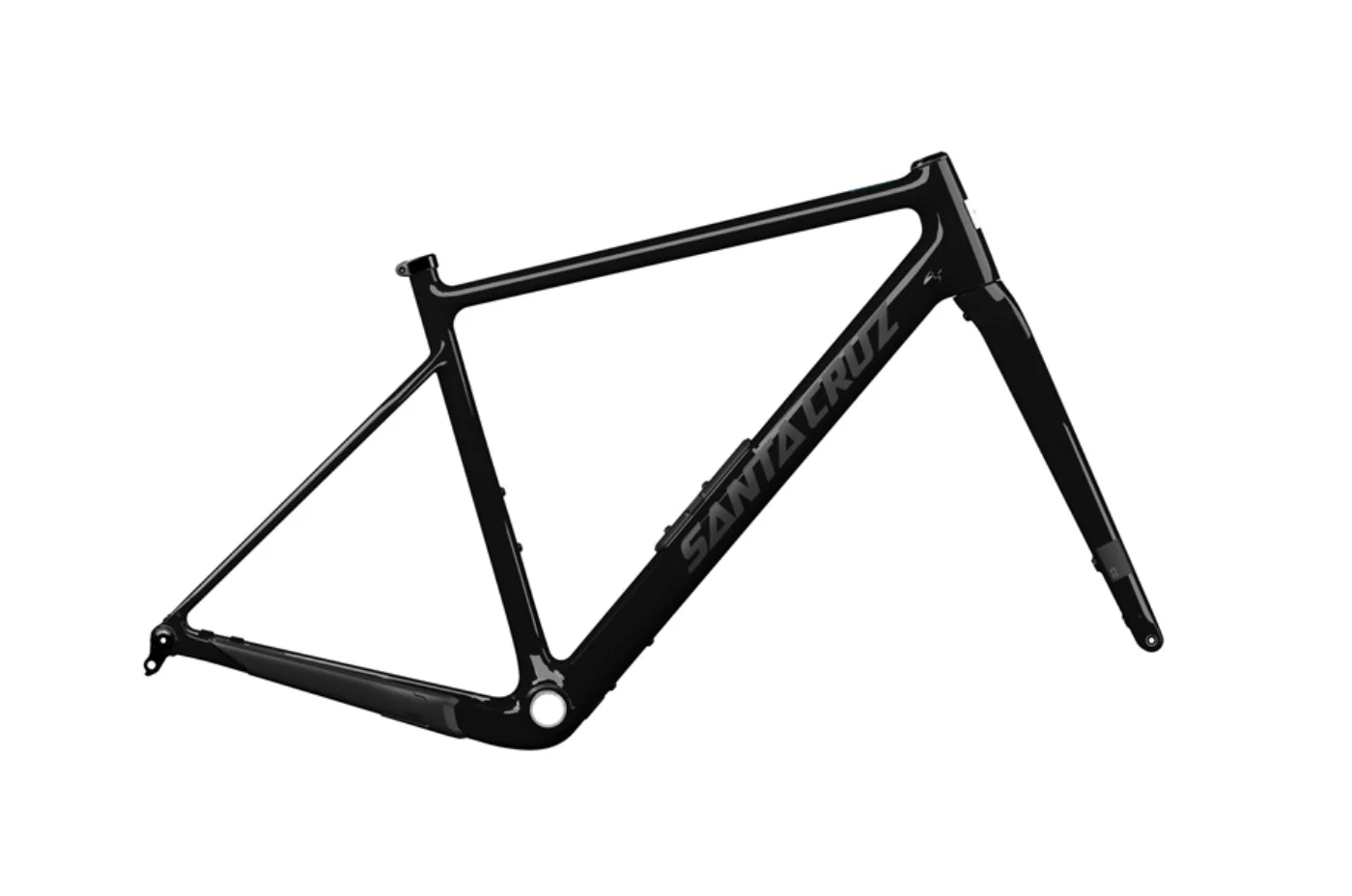

Santa Cruz Stigmata CC Frameset
Go Fast. Go Light. Go Further.
The Stigmata blurs the lines between free-roading drop bar singletrack slicer and buckled down race-winning gravel machine. It’s designed for the rider lining up for The Big Event, escaping via the road less traveled or who can’t help themselves from finding the hardest way there. Whether your style is baggy or zipped up, the Stigmata is the fast and loose riding partner that’s always ready to rise to the occasion.
FEATURES:
- Progressive Geo: Long reach – designed around 70mm stems – with a slack head tube angle. Adapting progressive MTB geo for ultra off-road capabilities. Room for 50mm tires.
- Suspension Corrected Frame: Suspension corrected geo for the longer axle-crown of 40mm gravel suspension forks. Bonus: extramud clearance.
- Glovebox: Place your ride essentials securely in the Stigmata's downtube. The Glovebox comes with a fitted Tool Wallet and Tube Purse, tailored for the frame to keep your tools close to hand.
SPECS:
| Frame | Carbon CC |
| Fork | Carbon CC |
| Front Derailleur | Clamp |
| Headset/Headtube |
Integrated (IS41/52)
|
| Seat Post | 27.2mm |
| Seat Clamp | 31.8mm |
| BB Shell |
68mm Threaded
|
| Max Tire Size | 2.1" |
| Max Chainring Size | 50t |
| Water Bottle Mounts | 3 |
| Brake Mount |
Flat Mount (32mm caliper bolts)
|
Geometry
All units are in millimeters or degrees.
| S | M | L | XL | XXL | |
|---|---|---|---|---|---|
| Reach | 390 | 405 | 420 | 435 | 450 |
| Stack | 564 | 576 | 600 | 612 | 631 |
| Head Tube Angle | 69.5° | 69.5° | 69.5° | 69.5° | 69.5° |
| Seat Tube Length | 455 | 485 | 515 | 545 | 575 |
| Front Center | 625 | 645 | 668 | 688 | 710 |
| BB Height | 278 | 280 | 280 | 282 | 282 |
| BB Drop | 78 | 76 | 76 | 74 | 74 |
| Wheelbase | 1043 | 1063 | 1087 | 1108 | 1130 |
| Rear Center | 423 | 423 | 423 | 423 | 423 |
| Head Tube Length | 105 | 120 | 145 | 160 | 180 |
| Top Tube Length | 552 | 570 | 592 | 610 | 631 |
| Seat Tube Angle | 74° | 74° | 74° | 74° | 74° |
| Standover Height | 728 | 753 | 778 | 804 | 830 |
SIZING
